How do you hook up electric brakes?

Just 5 Steps to Install Brake Controller and Wiring!

Disconnect the vehicle’s negative battery cable.
Determine where to mount the controller on the dash.
Drill mounting holes for the bracket.
Fasten the brake controller into place.
Plug in the brake controller with a custom wiring harness.

Can you fit electric brakes yourself?

Installing an electric brake controller yourself is easier than you think. There are a few options for controlling your caravan’s electric brakes, from hard-wired electric brake controllers (EBCs) installed in the tow vehicle to a plug-and-play loom to units fitted to the van’s A-frame and controlled via Bluetooth.

How much does it cost to have electric brakes installed?

Naturally, if opting for an in-car brake control solution, each of these vehicles would have a brake controller fitted. On top of the electric controller cost, the average cost of an in car install can be upwards of $500.

What size trailer needs electric brakes?

Electronic brakes are most commonly used on caravans and trailers over 750kg and are legally required on all caravans and trailers where the GTM is more than 2000kg. Remember that if you are considering electronic brakes, you will need to install a control unit in the tow vehicle.

How much does it cost to install a brake controller?

What is the average cost to install brake controller? On average, you can expect to pay between $60.00 and $340 for the controller itself and up to $300 for labor on the most complicated installations.

How to install a brake controller with elecbrakes?

Here’s how easy it is to install an electric brake controller with Elecbrakes 1 Mount the electric brake controller onto the trailer draw bar. 2 Plug the electric brake controller into the trailer cable and the tow car socket. 3 Connect the electric brake controller using the free Elecbrakes smartphone app.

How long does it take to install an electric brake controller?

Thanks to Elecbrakes’ innovative trailer mounted technology you can now be up and running with the best proportional electric brake controller in Australia in as little as 10 minutes. Mount the electric brake controller onto the trailer draw bar. Plug the electric brake controller into the trailer cable and the tow car socket.

Do you need an electric brake controller for a tow trailer?

While you do have to install an electric brake controller to operate the electric brakes on your trailer, this doesn’t have to be a hassle. Elecbrakes makes electric brake controller installation fast and easy and it gives you the freedom to use any compatible tow vehicle with your trailer.

When do you need an electric brake system?

Electric Brakes Required? The brake system must cause an immediate application of the trailer brakes in the event of the trailer becoming detached from the towing vehicle. Under these circumstances, the brakes must remain applied for at least 15 minutes. What are electric brakes?

How do you add electric brakes to a trailer?

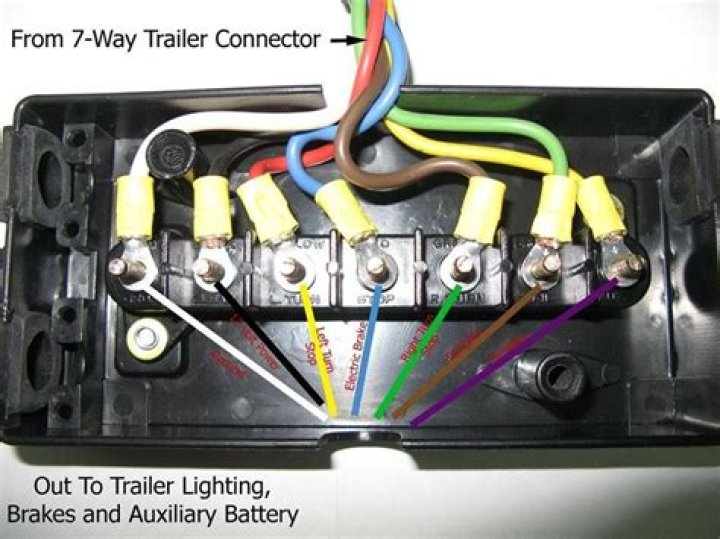

You’ll also have to convert your trailer connector to a 7-way that includes a circuit for electric brakes. Each brake assembly should have 2 wires coming out of the back. Attach one of these wires to the trailer for the ground. The other wire will receive power.

Do you have to hook up wire to brakes?

The brakes are not grounded, so the wires coming out of the back of the brakes does not have polarity ( no hot or ground). It does not matter which wire you connect to which wire, only that they are not connected to each other! Run a the two conductor wire to each brake, and hook to the two wires on the brake.
