What does a battery isolation manager do?

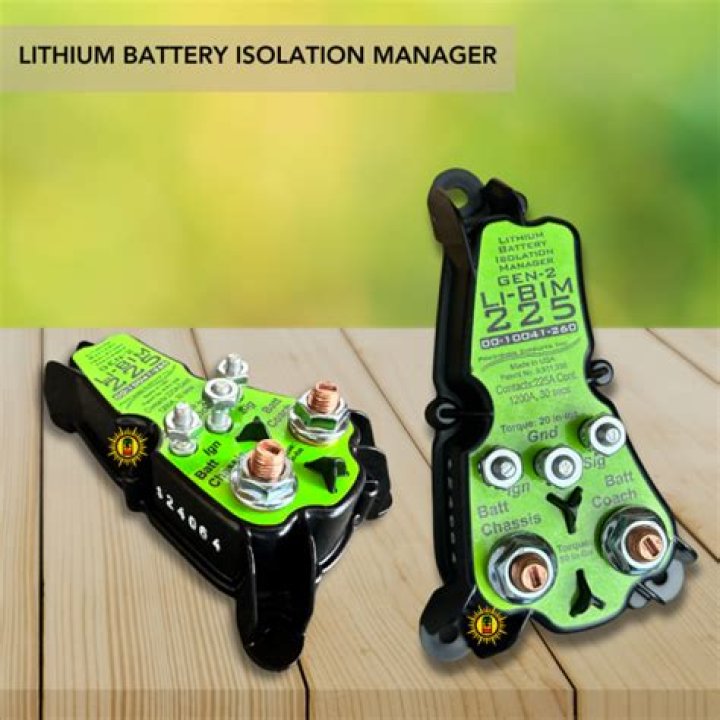

The Lithium Battery Isolation Manager (Li-BIM) isolates the two battery systems, chassis, and coach, in a motorhome. This prevents loads in one system from discharging both. It also connects the two battery systems together during charging. Both batteries are charged if either is being charged.
Can a battery isolator fail?
This test was to see if the isolator is allowing your batteries to be charged. Isolators can also fail by connecting the engine and the house battery. This allows your engine battery to be depleted by the use of your RV appliances.
What is a lithium battery isolation manager?
The LiFePO4 Battery Isolation Manager (BIM) monitors voltage and connects batteries when needed. That means that the BIM will connect for 15 minutes, disconnect for 20 minutes, and repeat this cycle until the coach battery is charged. If the coach battery resting voltage exceeds 13.4 V then the BIM will disconnect.
What is an AGM battery?
AGM or Absorbent Glass Mat is an advanced lead-acid battery that provides superior power to support the higher electrical demands of today’s vehicles and start-stop applications. AGM batteries are extremely resistant to vibration, are totally sealed, nonspillable and maintenance-free.
What is a battery isolation switch?
A battery isolator separates multiple batteries from one another to ensure that a vehicle has access to a backup power source. The idle batteries are charged by the alternator, and the battery isolator can switch power sources if the battery in use suddenly fails.
How do you check a battery solenoid?
Have a friend turn the key in the ignition to attempt to start the vehicle. Listen carefully, as you should hear a click when the starter solenoid engages. If you do not hear a click, the starter solenoid is likely not functioning properly. If you do hear clicking, the solenoid may be engaging, but not sufficiently.
How can you tell if a battery is good or bad?
Drop each battery (with the flat, negative end down) from a couple of inches up. If the battery is charged, it should make a solid thud and most likely stay standing. If, however, the battery is dead, it will bounce and fall over immediately.
When to disconnect battery isolation manager ( BIM )?
If the voltage difference is too low, then there is a negligible charging current, and no need to connect to the coach battery. The BIM will disconnect if the alternator voltage drops below 13.3 V. If the alternator voltage is too low, then it cannot adequately charge the coach battery, so there is no reason to connect.
What happens if battery isolator is not working?
If the isolator is not operating properly, a number of problems can occur. Being able to troubleshoot an isolator may be the difference between your car starting or not starting at all. Understand that a standard battery isolator has four contacts, two large contacts and two smaller ones.
Is there a way to manage two batteries?
You can manage dual batteries with a smart dual battery isolator (or “smart solenoid”), which prioritizes the starting battery. If the starting battery drops below a certain voltage, the smart dual battery isolator will shut off charge to the house battery, maintaining the starting battery’s power levels.
How often does the LiFePO4 battery isolation manager connect?
The LiFePO4 Battery Isolation Manager (BIM) monitors voltage and connects batteries when needed. Under normal charging conditions, the BIM will connect for 15 minutes every 35 minutes. That means that the BIM will connect for 15 minutes, disconnect for 20 minutes, and repeat this cycle until the coach battery is charged.
What to do if your battery isolator is bad?
You may need a new battery. But if you should discover in the middle of a trip that your engine battery is not being charged because the isolator is bad, you can get out a wrench and move the engine battery wire to the same terminal as the alternator wire and have a temporary solution to the problem.
Why do you need a lithium battery isolation manager?
It allows the lithium batteries to be charged without over taxing the alternator and also correctly charges the wet cell starting battery. In addition it prevents the wet cell starting battery from being overcharged when plugged into shore power, or when running the generator.
Why do you need a dual battery isolator?
A battery isolator is an important part of a multi-battery electrical system. When it is operating properly, it ensures that both vehicle batteries are charging when they should be, and that the vehicle’s main battery will have enough juice to start the car in the event that the accessory battery has been drained.
Where are the circuit breakers on a battery isolator?
If the problem is your house battery, there are 2 self-resetting circuit breakers in the long electrical wire running from the isolator to your battery – one near the isolator and one near the battery. Follow the wire to find them. To the right is a photo of the circuit breaker near the isolator (one rusty terminal).
