What is the Norcold fault code for a refrigerator?

3163LG (1.8 Cubic FT.) 3163LG (1.8 Cubic FT.) Norcold Fault Codes AC HE, H, or On light flashing 3 times (What to do!) Norcold Fault Codes AC HE, H, or On light flashing 3 times (What to do!) Is Your Norcold Refrigerator Doing One of the Following? This fault code means that there is an AC Heater fault.

How do I reset Norcold when no co flashes?

In order to reset Norcold fridges when the No Co code flashes one has to take off the cover of the fridge controller. The first time the “no co” fault code appears on the optical control assembly, it can be cleared by the user by turning the refrigerator OFF and then back ON.

What does Norcold code on light flashing 3 times mean?

Norcold Fault Codes AC HE, H, or On light flashing 3 times (What to do!) Norcold Fault Codes AC HE, H, or On light flashing 3 times (What to do!) Is Your Norcold Refrigerator Doing One of the Following? This fault code means that there is an AC Heater fault.

What does the Norcold 1210 error code mean?

Norcold 1210 refrigerator error codes. Fault Codes. Fault Code Meaning. Corrective Actions. No display. DC voltage is unavailable to the refrigerator control panel or the refrigerator is OFF. – That the refrigerator is ON. – That the battery charging equipment of the vehicle is operational.

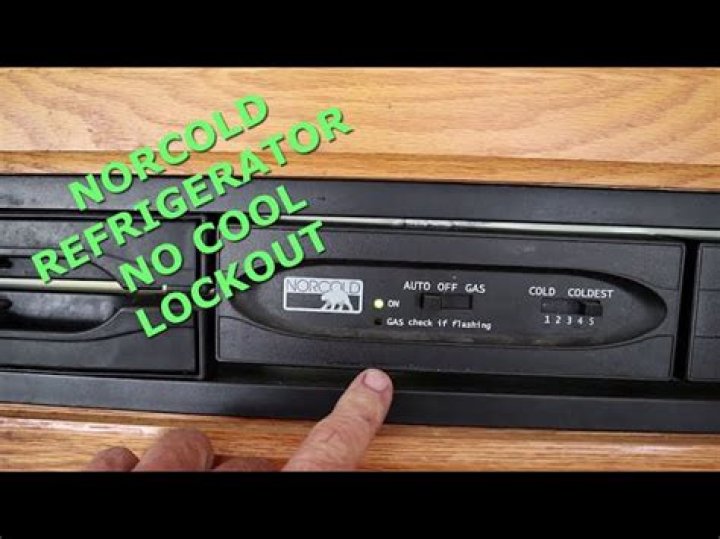

What does no co mean on a Norcold refrigerator?

If it’s showing one of these three codes, it’s simply in lockout mode and your refrigerator needs to be reset and diagnosed: “NO CO” – These models will show this code: 1200, 1210, N841, N641 “n” – These models will show this code: N621, N821 “if your light is flashing 5 times repeatedly” – These models will show this fault: N811, N611, N510, N410

Why does my Norcold refrigerator keep flashing fault codes?

If it’s showing one of these three codes, it’s simply in lockout mode and your refrigerator needs to be reset and diagnosed: Your Norcold refrigerator will show this code if it’s not sensing a temperature drop while in operation. This is actually a safety precaution!

What is the Diagnostic Code on Norcold N821?

Norcold N821, replaced power board with the newer model one, seems to be working both on AC and LP But… when on LP the board alarm is sounding, no error codes, no diagnostic codes present.. not sure why the alarm is sounding. Thz for any help. What alarm? What is the code on the display?

What’s the No FL code on a Norcold?

Na8lx.3r my dad has one in his rv just got installed and it has the no FL code. He followed the steps of having it on auto ac mode and unplugging the ac outlet however there was no spark from the igniter and it doesnt seem theres any gas.

When do Norcold fault codes appear on a refrigerator?

Norcold Fault Codes LI OP, O, or 6 flashes (potential fire hazard!) Is your refrigerator doing one of the following? These codes appear when either your high temperature limit switch has been tripped or there has been a break in the connection at LIMIT IN and LIMIT OUT on the rear power board.

How to check for burn marks on Norcold refrigerator?

First remove the optical board from the front of the refrigerator and inspect the plug connection. Make sure it’s tight and that there are no visible burn marks. Next, do the same with the rear Norcold power board. We recommend first removing the power board cover so that you can also inspect this board for burn marks.

How do you reset the Norcold on a refrigerator?

The hard-wire reset of the power board must be performed by a service center according to Norcold if you are not qualified to preform this task. 1. Turn OFF the refrigerator. 2. Disconnect the following from power board: a. 12 VDC positive and negative wires. b. AC power cord. c. Gas valve solenoid coil wires. d.

Where is the Power Board on a Norcold refrigerator?

There will be an access panel on the outside of your RV, directly behind where the refrigerator sits. From there you will have direct access to the power board. It is a black rectangular cover that will have wires going to it. There are a few screws holding this cover on.

What are the three Norcold fault codes for refrigerators?

If it’s showing one of these three codes, it’s simply in lockout mode and your refrigerator needs to be reset and diagnosed: “NO CO” – These models will show this code: 1200, 1210, N841, N641. “n” – These models will show this code: N621, N821. “if your light is flashing 5 times repeatedly” – These models will show this fault: N811, N611, N510,

How do you reset a Norcold RV refrigerator?

Just turn the fridge off for about 3 to 5 minutes and then turn it back on again. This should reset most Norcold RV fridges. However, if there is a problem with the control panel and it is in lock-out mode or some other code, resetting it takes a lot more work, more tools, and some electrical knowledge.

What does SR stand for on a Norcold refrigerator?

“AC“ “HE“ Audible alarm also. This is a fault within the refrigerator controls. This is not owner serviceable. See your dealer or authorized Norcold Service Center. “Sr“ Audible alarm also. This is a fault within the refrigerator controls. This is not owner serviceable. See your dealer or authorized Norcold Service Center. No display.

Why does my Norcold refrigerator have a red light?

If your Norcold refrigerator power ON/indicator light is red, flashes on five times, is off five seconds, then repeats, it means a flame was sensed at the burner when there should be none present. The possible cause for this error is the gas valve is “mechanically” stuck open.

Is there a recall on the Norcold 1200?

Recalls on the 1200 model refrigerator date back several years and have had several revisions. Norcold is very good about getting these replaced for you at no cost.

How many times does a Norcold refrigerator Blink?

Experience: 23 yrs. RV experience including Cummins North West, Country Coach, Monaco Coach – vendor certified.

Why are there 6 flashes on Norcold n611?

The Norcold N-series service manual shows different troubleshooting for different flashes. If green light is the on/off Led, it is probably a board level failure. It could be the small board that handles the display panel, or the large main board. That might explain the 6 flashes, when 5 is the highest fault code flash.

Experience: 23 yrs. RV experience including Cummins North West, Country Coach, Monaco Coach – vendor certified.

How to unplug a Norcold refrigerator from AC power?

1. Insert one end of a jumper wire (10 gauge) into the P-2 opening on the control board, this will be marked…. 2. Stick the other end of the jumper to ground (metal back panel) and hold in place for a min of 10 seconds….. You should just be able to unplug the fridge from AC power as it should be disconnected and then plug back in when done.

Is the Norcold fridge Modle in lock out mode?

I HAVE A NORCOLD FRIDGE MODLE N611 SER # (NNN) NNN-NNNN FLASHES LIGHT BUT NO COOL MY DAUGHTER USED IN COLD WEATHER I WAS TOLD IT WENT INTO LOCK OUT MODE? CANT FIND HOW TO GET THIS OUT OF THIS MODE? … read more

Where can I find the Norcold service manual?

We have moved our Norcold Service Manual Specifications and Fault Codes to the installation pages, please select your model below.

What do I need to Reset my Norcold refrigerator?

From there you will have direct access to the power board. It is a black rectangular cover that will have wires going to it. There are a few screws holding this cover on. The next thing you’ll need to do is jumper a pin terminal on the power board to ground (we recommend something around a 12 gauge jumper wire).

What should I do if my refrigerator light flashes?

1. Disconnect the refrigerator from AC power (unplug from the outlet in the back). 2. The next think you’ll want to do is verify that you have your AC heater connected properly. Below is an article explaining how it should be connected. 3. Next, check to make sure the glass fuse on the power board is good. This is your AC fuse. 4.

Why does my Norcold refrigerator light keep going off?

If the light quits flashing you found your problem. LED FLASH SLOW (On/Off ~once per second): A Norcold service technician stated (not confirmed) that this could mean that the voltage supplied to your fridge is too low. In some documents the low voltage for a typical RV fridge is 10.5VDC, but this is just a rule of thumb.

Where are the fuses on the Norcold refrigerator?

Norcold refrigerator fuse location. There are three fuses located on the main control board (power board). Two are automotive style fuses used to protect DC voltage circuits (FI and F2) and one is a glass body cartridge style fuse (F3) used to protect AC voltage circuits.

How to troubleshoot your AC / DC Norcold refrigerator?

Make sure the power switch/thermostat is not in the OFF position. Make sure that the refrigerator is correctly installed and that the vents are not blocked. Make sure that the power source to the refrigerator is serviceable. Make sure that the fuse or circuit breaker is intact (See “Over current protection system” section).

What kind of power does a Norcold refrigerator use?

Norcold gas absorption refrigerators operate off of 12V DC power (battery power). The AC plug that you see in the back is only powering your AC Heater/s that will cool the refrigerator when running it on AC or Auto Mode. The 12V DC powers the rear power board, the front control board, and the interior light.

Why does my Norcold refrigerator light stop flashing?

Remove the plug found between the +12VIN and +12VOUT wires put a jumper between these wires. If the light quits flashing you found your problem. LED FLASH SLOW (On/Off ~once per second): A Norcold service technician stated (not confirmed) that this could mean that the voltage supplied to your fridge is too low.

What to do if your Norcold Fridge is not working?

Please use following link to see where the ARP Control can be with respect to these wires: Norcold 1200 Wiring . If your fridge is not working, please start by checking your fuses and circuit breakers. If the Norcold kit LED is turned on, it can be assume that there is power to the kit.

How to turn off mode on Norcold N621?

Press the mode key until a 6 appears. Stop and an E r should begin to flash. Press the TEMP SET button until C L appears. Press the TEMP SET button until the E r returns. Turn system OFF. Turn system back ON.

How does the Norcold refrigerator work in auto mode?

I have a Norcold N811RT S/N 16620149 it cools fine on AC in auto but will not work on gas, either in auto mode or if the switch is moved to gas the green light will flash 4 times. If I turn it off and then back on in auto with shore power it will cool and work.

What does fault code F mean on Norcold refrigerator?

You can create more airflow space by moving or eliminating groceries. Read and understand the fault codes that appear on your Norcold refrigerator’s exterior readout panel. If you are using liquid propane for power, an error fault code of “F” means that your refrigerator won’t light. If this occurs, consider the altitude of your campsite.

How to troubleshoot the Norcold 121x RV refrigerator?

Norcold 121x rv refrigerator troubleshooting 1. Shut-off arm in OFF position. 1. Lower to ON position. 2. No AC power available. 2. Restore AC power. 3. Leaky water valve. 3. Replace water valve 4. Jammed ice cubes. 4. Check for bent shut-off arm 5. Mold heater open -no resistance. 5. Replace ice …

How often does the fault code red flash on a refrigerator?

Red, flashes on two (2) times every five (5) seconds. This is a fault within the refrigerator controls. Turn the refrigerator power OFF and then back ON to reset. If the Fault Code continues, see your dealer or authorized Norcold Service Center. Red, flashes on three (3) times every five (5) seconds. A temperature limit swich is open.

What should I do if my Norcold refrigerator goes into lockout?

The next thing you’ll need to do is jumper a pin terminal on the power board to ground (we recommend something around a 12 gauge jumper wire). The refrigerator must be on and showing the fault code before you jump the pin terminal to ground. Hold the jumper wire to the pin and ground for about 10 seconds or until you hear an audible click.
