Generally, p-wave velocity increases with depth and increases with increasing rigidity of a material. Therefore p-waves travel fastest through the solid, iron inner core of Earth
Where do P waves travel faster?
Because the earth’s mantle becomes more rigid and compressible as the depth below the asthenosphere increases, P-waves travel faster as they go deeper in the mantle. The density of the mantle also increases with depth below the asthenosphere. The higher density reduces the speed of seismic waves.
Where do P waves travel slowest and fastest?
There are two types of body waves: P-waves travel fastest and through solids, liquids, and gases; S-waves only travel through solids. Surface waves are the slowest, but they do the most damage in an earthquake.
Where do P waves travel fastest quizlet?
Terms in this set (21) P-WAVES travel fastest through rock . P-waves can travel in any kind of material( liquid , solid).
Which layer do waves travel fastest?
S-waves travel through materials with rigidity and densitygreater rigidityfaster S-wavesgreater densityslower S-waves
What is the speed of P waves?
In the Earth, P waves travel at speeds from about 6 km (3.7 miles) per second in surface rock to about 10.4 km (6.5 miles) per second near the Earth’s core some 2,900 km (1,800 miles) below the surface. As the waves enter the core, the velocity drops to about 8 km (5 miles) per second.
Why is P wave the fastest?
P-waves and S-waves are body waves that propagate through the planet. P-waves travel 60% faster than S-waves on average because the interior of the Earth does not react the same way to both of them. … The energy is thus less easily transmitted through the medium, and S-waves are slower.
How do P waves move quizlet?
P waves are a type of compression waves, which means they push and pull the particles of the rock as they move through it. S Waves, or shear waves, are the second type of body wave. They do not travel as rapidly through the Earth as P waves.
Are P waves faster than S waves?
P waves travel fastest and are the first to arrive from the earthquake. In S or shear waves, rock oscillates perpendicular to the direction of wave propagation. In rock, S waves generally travel about 60% the speed of P waves, and the S wave always arrives after the P wave.
Which seismic waves travel the fastest quizlet?
P waves can travel through solid or liquid, so they can travel through all layers of the Earth. P waves are the fastest seismic waves, therefore they will be the first wave to arrive following an earthquake at the recording station.
Article first time published on
How fast do P waves travel through granite?
Rock TypeVelocity [m/s]Velocity [ft/s]Limestone5,800–6,40019,000–21,000Dolomite6,400–7,30021,000–24,000Anhydrite6,10020,000Granite5,800–6,10019,000–20,000
How do P waves move?
P waves travel through rock the same way that sound waves do through air. That is, they move as pressure waves. When a pressure wave passes a certain point, the material it is passing through moves forward, then back, along the same path that the wave is traveling. P waves can travel through solids, liquids and gases.
Where do most earthquakes occur?
Over 80 per cent of large earthquakes occur around the edges of the Pacific Ocean, an area known as the ‘Ring of Fire’; this where the Pacific plate is being subducted beneath the surrounding plates. The Ring of Fire is the most seismically and volcanically active zone in the world.
What does P in a P wave mean?
Answer. The P wave represents atrial depolarization. The normal P wave morphology is upright in leads I, II, and aVF, but it is inverted in lead aVR.
Do P waves travel through the mantle?

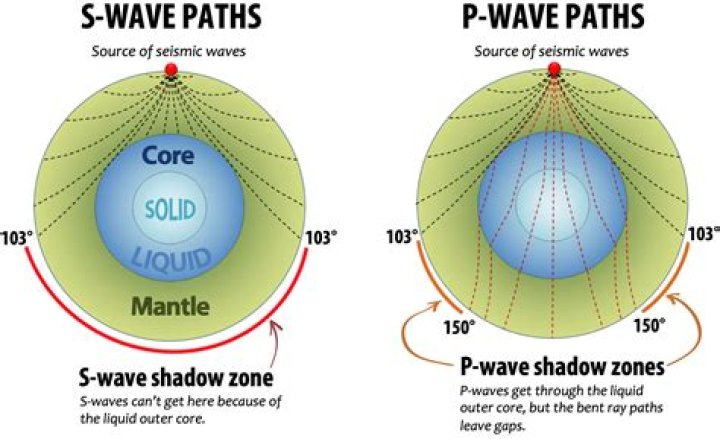

4. Figure 19.2a: P-waves generally bend outward as they travel through the mantle due to the increased density of mantle rocks with depth. … This indicates that P-waves slow down in the outer core, suggesting that this layer has a significantly different composition from the mantle and may actually be liquid.
Are P waves longitudinal?
The P seismic waves travel as elastic motions at the highest speeds. They are longitudinal waves that can be transmitted by both solid and liquid materials in the Earth’s interior.
Do P waves travel faster through denser material?
The first is that P waves travel faster than S waves. This is the reason they are referred to as primary waves, as they are the first seismic waves to arrive at a seismic station. … More importantly for our purposes, P waves travel faster through denser rock, slower through less dense rock.
What is the speed of S and P waves in the outer core?
The boundary between the inner and outer core is fairly sharp. The P–wave velocity in the inner core is about 11.3 km/s. The outer core does not transmit S–waves and is therefore presumed to be fluid.
What causes the velocity of a P wave to speed up when it enters the inner core?
What causes the velocity of a P-wave to speed up when it enters the inner core? The inner core is liquid, and thus the wave speeds up.
In which location did the P waves arrive earliest?
“An earthquake was recorded in San Diego. The seismograph record shows that P-waves first arrived at 10:02-09 PST (read this is “10:02 and 9 seconds, AM, Pacific Standard Time”), and S-waves arrived at 10:03-04 PST.
What can P waves travel through?
In a P wave, the rock particles are alternately squished together and pulled apart (called compressions and dilatations), so P waves are also called compressional waves. These waves can travel through solids, liquids, and gases. P waves can travel through the liquid outer core.
Why do waves arriving at more distant places travel at a higher average speed?
The effects of dispersion become more noticeable with increasing distance because the longer travel distance spreads the energy out (it disperses the energy). Usually, the long periods arrive first since they are sensitive to the speeds deeper in Earth, and the deeper regions are generally faster.
Where in the layer of the Earth do P waves and S waves travel?
The speed of P waves and S waves increases as they travel deeper into the Earth’s mantle . They travel through the Earth in curved paths, but they change direction suddenly when they pass through the boundary between substances in different states.
Why do P waves slow down in a liquid?
Seismic waves travel more quickly through denser materials and therefore generally travel more quickly with depth. … Molten areas within the Earth slow down P waves and stop S waves because their shearing motion cannot be transmitted through a liquid.
What is the difference between P waves and S waves in terms of speed?
P waves travel at speeds between 1 and 14 km per second, while S waves travel significantly slower, between 1 and 8 km per second. The S waves are the second wave to reach a seismic station measuring a disturbance. The difference in arrival times helps geologists determine the location of the earthquake.
Can P waves travel through liquids quizlet?
P waves can travel through solids and liquids. A type of seismic wave that moves the ground up and down or side to side. It comes secondary to the P waves.
What kind of movement is produced by P and S waves?
What kind of movement is produced by each three types of seismic waves? P waves- compress and expand the ground like an accordian. Travel through both solids and liquids. S waves- vibrate from side to side as well as up and down.
How is the motion of P waves different from the motion of S waves quizlet?
P waves are the fastest and have the lowest amplitudes; S waves are the second fastest and have the second lowest amplitudes; surface waves are the slowest and have the highest amplitudes.
Which kind of seismic wave is fastest moving group of answer choices?
P-waves, or primary waves, are the fastest moving type of wave and the first detected by seismographs. They are also called compressional or longitudinal waves, and push and pull the ground in the direction the wave is traveling. They usually cause very little damage.
Which type of earthquake wave travels slowest quizlet?
surface waves are slowest and travel the earth’s surface. P-waves are the fastest and travel through earth. S-waves also travel fast and through earth but not through the core.
How do seismic waves travel quizlet?
How do seismic waves travel? They move outward from the focus in all directions. What is the epicenter? The point on Earth’s surface directly above the earthquake’s focus.
